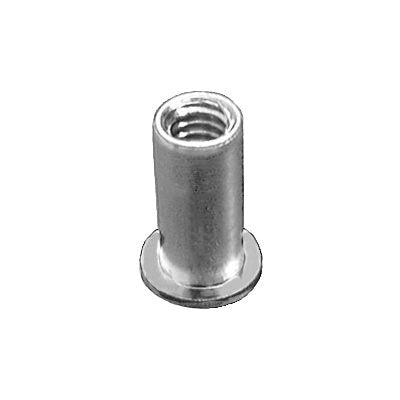

Au-ve-co® NUTSERT® 16183 Nut Insert, 1/4-20 Thread, 0.08 to 0.14 in Thick Material, 0.687 to 0.702 in L, Aluminum, Plain

The large flange system provides captive threads in materials too thin to Independently support threads or where costly tapping operations are to be eliminated. The large flange fastener can be used as a rivet to join materials that will ultimately have a separate component attached.
Au-ve-co® NUTSERT® Nut Insert, 1/4-20 Thread, USS Thread, 0.08 to 0.14 in Material Thickness, 0.687 to 0.702 in Length, 0.332 to 0.338 in Hole Diameter, 0.475 to 0.49 in Diameter Head, 0.328 to 0332 in Body Diameter, Aluminum, Plain, 0.058 in Flange Thickness Additional Information
