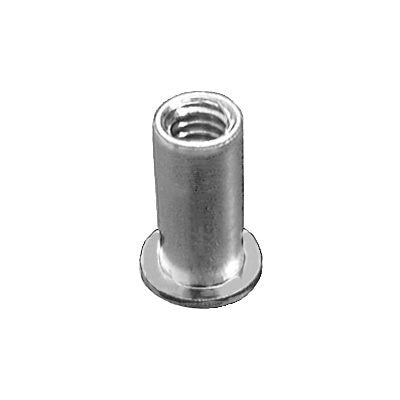

Au-ve-co® NUTSERT® 16188 Nut Insert, #10-24 Thread, 0.01 to 0.08 in Thick Material, 0.531 to 0.546 in L, Steel

The large flange system provides captive threads in materials too thin to Independently support threads or where costly tapping operations are to be eliminated. The large flange fastener can be used as a rivet to join materials that will ultimately have a separate component attached.
Au-ve-co® NUTSERT® Nut Insert, #10-24 Thread, USS Thread, 0.01 to 0.08 in Material Thickness, 0.531 to 0.546 in Length, 0.25 to 0.256 in Hole Diameter, 0.406 to 0.421 in Diameter Head, 0.246 to 0.25 in Body Diameter, Steel, Zinc-Plated, 0.038 in Flange Thickness Additional Information
