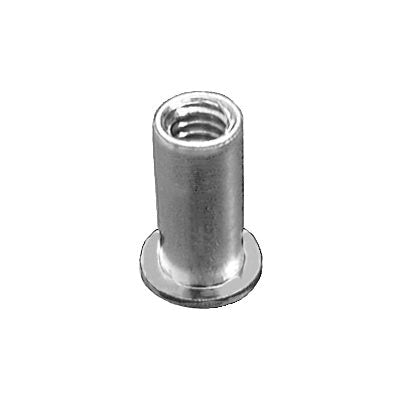

Au-ve-co® NUTSERT® 16195 Nut Insert, 5/16-18 Thread, 0.125 to 0.2 in Thick Material, 0.875 to 0.89 in L, Steel

The large flange system provides captive threads in materials too thin to Independently support threads or where costly tapping operations are to be eliminated. The large flange fastener can be used as a rivet to join materials that will ultimately have a separate component attached.
Au-ve-co® NUTSERT® Nut Insert, 5/16-18 Thread, USS Thread, 0.125 to 0.2 in Material Thickness, 0.875 to 0.89 in Length, 0.413 to 0.423 in Hole Diameter, 0.665 to 0.68 in Diameter Head, 0.409 to 0.413 in Body Diameter, Steel, Zinc-Plated, 0.65 in Flange Thickness Additional Information
